PTFE

PTFE

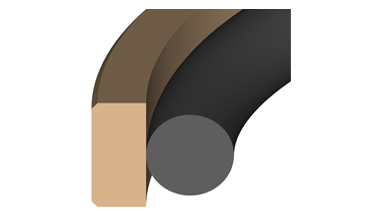

The PTFE piston seal is an excellent choice for most high duty cycle linear actuators because it provides low friction performance and long service life. These seals are relatively low cost, and because of the low friction of PTFE, they can almost eliminate stick-slip piston movement behavior.  It's important to note that for proper use they must be used in conjunction with an O-Ring energizer.

Depending on your application's demands, PTFE piston rings come in over 1500 different combinations of materials, cuts, cross-sections and other options. There are over 10+ different options for material choices alone. Some of the most popular are 15% glass filled PTFE, 40% bronze filled PTFE, and 5% molybdenum disulfide (Moly) filled PTFE.

Temperature range: -65°F to +400°F

Applications: Reciprocating; slow rotary; slow oscillating

Materials: PTFE with numerous filling options; Lubrithane

Max Pressure: 5,000 psi

Max Velocity: 3.2 ft/sec

For more information about this type of piston seal visit here:

PTFE Piston Seal
