T-Seal

T-SEAL

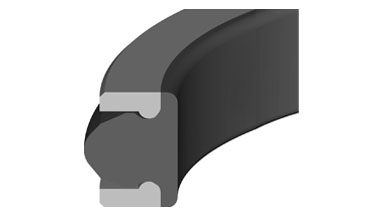

T-seals are engineered to retrofit O-Rings in either static or for their intended use in reciprocating applications. One of the main advantages of the T-seal is that the T base construction is highly resistant to spiraling during installation and operation. T-seals consist of a basic T shaped elastomer, typically flanked by two specially fitted backup rings. Since they're designed to retrofit O-Ring grooves, T-seals are available in many different widths depending on the type of O-Ring or O-Ring/backup combination that they are replacing.

To accommodate different types of mediums and internal pressures, there are several different materials available for both the elastomer T portion and the flanked back-up rings. You can consult our material guide or contact High Performance Seals to better determine what material is best suited for your application.

Features: Low compression set elastomer, rigid backups, square/rectangular shape

Temperature range: -65°F to +400°F

T-seal Elastomer: Nitrile; fluorocarbon; EPDM; HNBR  Backups: PEEK; PTFE; nylon

Max Pressure: 5,000 psi

Max Velocity: 3.2 ft/sec

For more information about this type of piston seal visit here:

T-Seal Product Literature
