Unloaded U-Cup

UNLOADED U-CUP

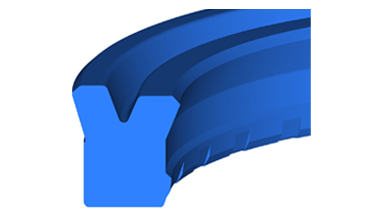

The name "U-cup" comes from their "U" shape. U-cups seal both the outside and inside diameters. U-cups are particularly popular because the required gland space is small. Typically, they're specified for low speed, low pressure environments for both hydraulic and pneumatic cylinders. The seal is secured by the flared, flexible lips in contact with the rod or cylinder wall. To minimize friction, clearance is at the heel. The effectiveness of the seal is increased as internal pressure increases against the lip's inner surface. Dynamic contact surfaces should have a finish of 8 - 16 RMS.

SYMMETRICAL

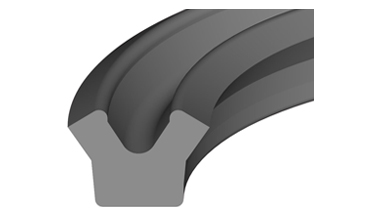

Symmetrical

These U-cup seals are pressure energized and feature great performance under high pressure applications. More

ASYMMETRICAL

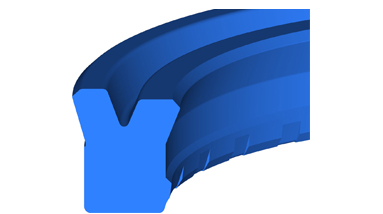

Asymmetrical

These are pressure energized U-cups featuring excellent performance under high pressure applications. More
